Launching Conductor VM Using Azure Public Community Image

In Microsoft Azure, navigate to Virtual machines.

• Select   +Create
  • Select Virtual Machine
• Follow internal company policy regarding setting up Instance details
  • INSTANCE DETAIL REQUIREMENTS:
  • Image – locate and select the WitFoo Conductor 1.0 image (snapshots provided)

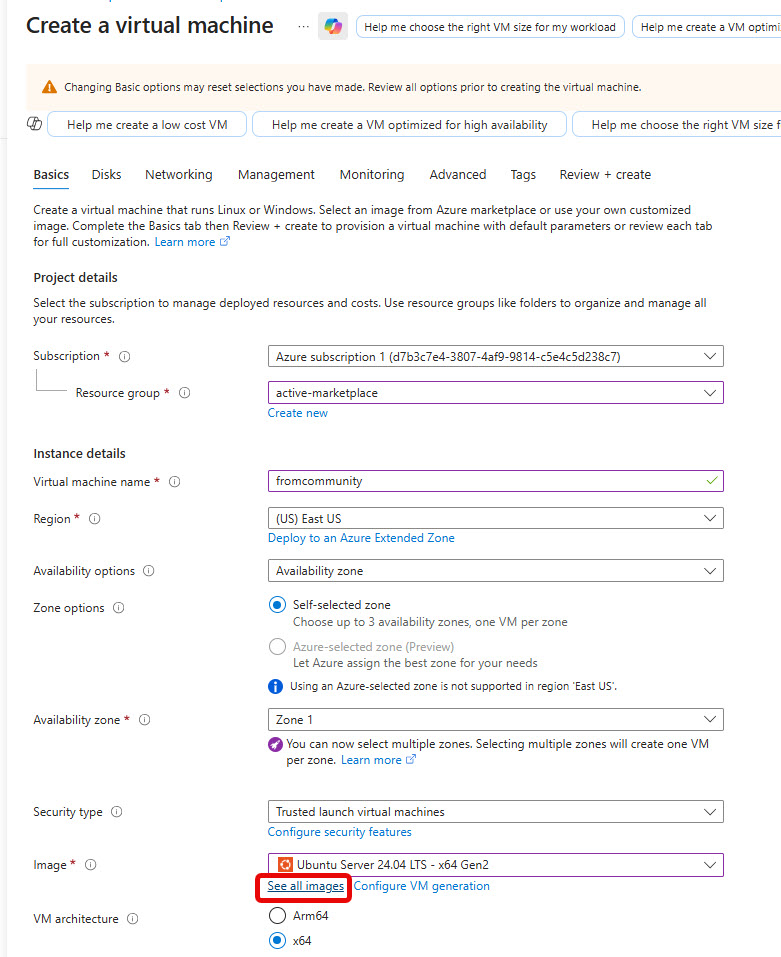

  • Click See all images

•

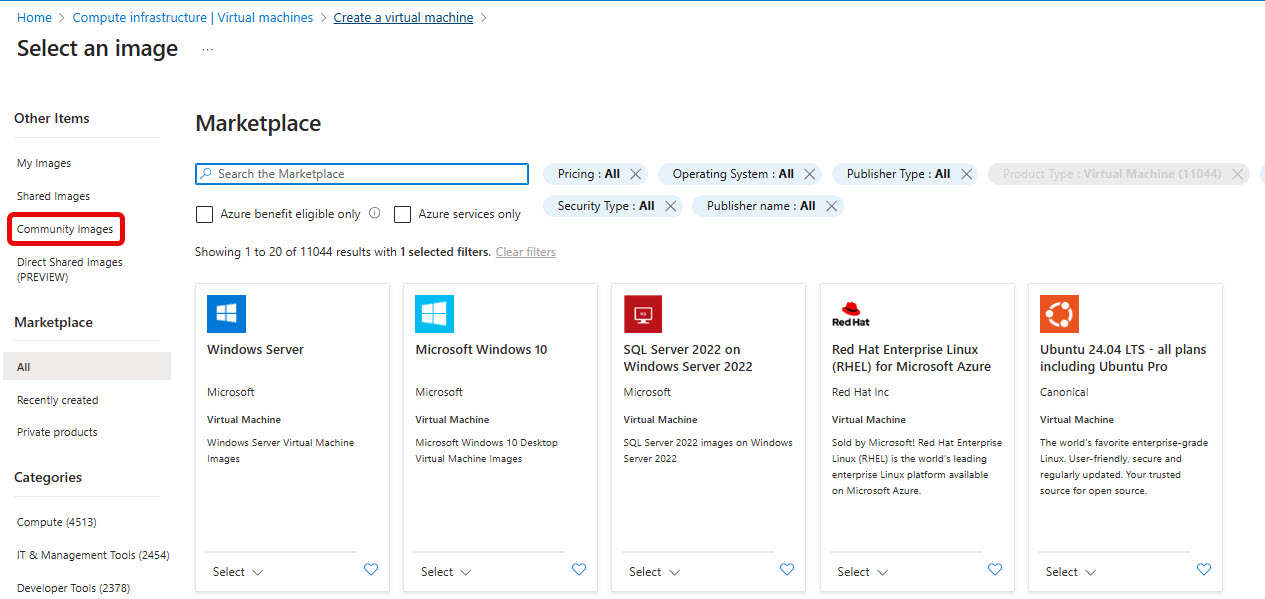

• Click Community images

•

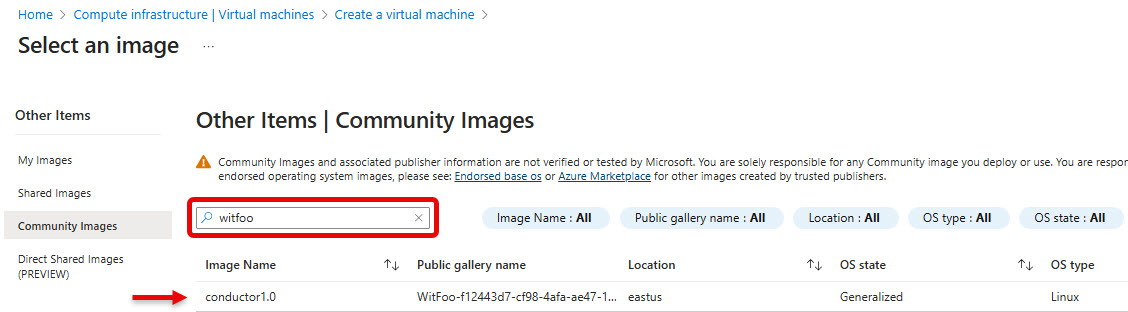

• Enter witfoo in the search box

• Click conductor1.0 (it will populate the image section of the VM creation process
• Choose minimum instance size: Standard_D4as_v4 (4vcpu, 16 GiB memory)
• Follow internal company policy regarding setting up authentication and security group
  • Port 22 required inbound for SSH
  • Port 443 required inbound to allow access to UI
  • Port 3000 required to monitor local Grafana metrics dashboard
• Once VM is created and ready, gain CLI access and use the appropriate link that follows:
  • Conductor configuration - without license
  • Conductor configuration - with license
